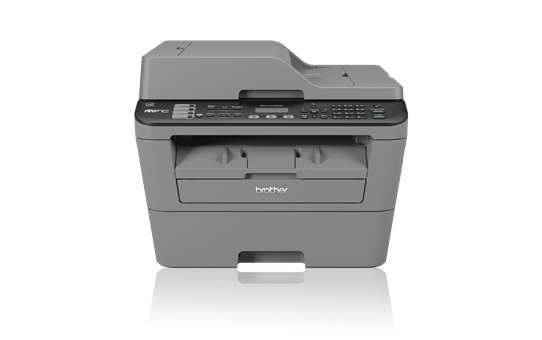

Brother MFC L2700DN

The Brother MFC L2700DN is a fully four-function all in one printer at a minimal cost. Brother has various laser mechanisms and its MFC-L2700DN model is based on one that delivers a super-fast speed of 24ppm. The drum and toner cartridge is a two-part component, where you can put in the high capacity Brother MFC L2700DN Toner Cartridges. The toner cartridge is available in both 5,200- and 2,600-page versions.

This machine is designed for individuals and small offices and includes features such as an automatic document feeder (ADF) and duplex print. LCD button sets include eight quick-dial buttons for fax, a numeric pad and buttons for special functions, such as ID card print and front-panel control of duplex and print resolution. It provides a printing resolution of 2400X600dpi. Duplex print is automatic and gives an exceptional 10.6 sides per minute, and the machine can double up from single-sided to duplex documents when copying.

Sockets at the rear of the printer comprise USB and 10/100 Ethernet networks. The great advantage of using this network connection is that if you have a wireless router, you can print to MFC L2700DN from the mobile device even if it has no wireless provision of its own.

Advantages:

• High-speed printing
• High capacity Brother MFC L2700DN Toner Cartridges
• Single sheet, multi-purpose feed
• Duplex printing capabilities
• Automatic Document Feeder
• Fax with quick-dial number
• Mobile printing via network
• USB and network connection
• ID Card printing

Disadvantages:

• No duplex scanning
• Poor grayscale copy quality
• Slightly antiquated look

Cartridge Requirements:

The compatible Brother MFC L2700DN Toner Cartridges are:

• Brother TN2320 Black Toner Cartridge

Conclusion:

The Brother MFC-L2700DN is an acceptable, solid mono laser all-in-one printer machine. It offers better print quality than other MFC printers, good speed and useful extra features, such as duplex print, ADF and ID card print, all for an affordable price.

How to deal with dots, repeating marks on the printouts while using Brother MFC L2700DN Toner Cartridges?

There can be so many reasons which cause low print-quality as dots and repeating marks on the printouts. An unclean drum unit can be the main reason for the problems regarding print-quality. Go through the following steps to clean the drum unit.

Clean the drum unit:

• First of all, make sure to turn off the power of the machine.
• Open the front cover of the printer to remove the Brother toner cartridge.
• Push the green lock lever and take out the toner cartridge of the drum unit.
• Turn the drum unit until its gear comes on the left side.
• Check the suspected area by turning the edge of the drum unit.
• Wipe the surface with the dry cotton swab to clean the marks on it.
• Put the Brother MFC L2700DN Toner Cartridges into the drum unit and make sure that it is locked at that place.
• Install the assembly of the toner cartridge and drum unit into the printer.
• Close the front cover of the printer.

If the above steps do not work, clean the paper pick-up roller.

Clean the paper pick-up roller:

• Pull the paper tray out of the machine.
• Wipe the paper separator and the tray with the soft, clean cloth to remove dust.
• Clean the two pick-up rollers inside the machine.
• Reload the paper tray and fix it.

If the above steps do not resolve the issue, try cleaning the corona wire.

Clean the corona wire:

• Open the front cover of the machine and take out the assembly of the toner cartridge and drum unit.
• Slide the green tab from left to right & vice versa, clean the corona wire carefully inside the drum unit.
• Install the Brother MFC L2700DN Toner Cartridges and drum unit into the printer.
• Close the front cover of the machine.
